| Серия | H610M |
| Процесор | Intel 1700 |
| Чипсет | Intel H610 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Памет | DDR5 |
| Брой слотове | 2 DIMM Slots, Max. capacity of system memory: 96 GB |
| Аудио | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Безжична мрежа | - |
| Конектори | SPI TPM Header, Chassis Intrusion and Speaker Header, 24 pin ATX Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, USB 2.0 Header (Supports 2 USB 2.0 ports), USB 3.2 Gen1 Header |
| Слотове | CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: PCIe 3.0 x1 Slot (PCIE2) |
| M.2 слот | Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode |

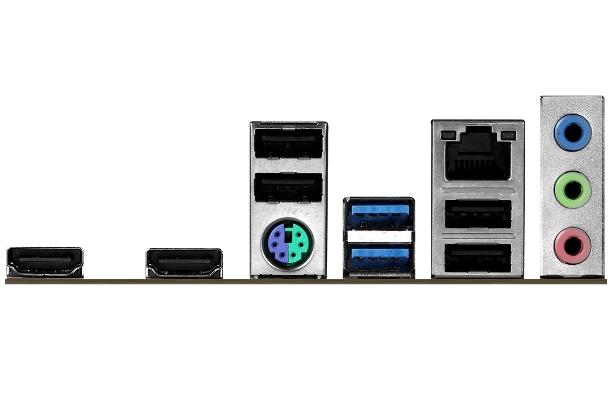

| Интерфейс | PS/2 Mouse/Keyboard Port, 2 x HDMI Ports, 2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports, RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер | ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN |
| Операционна система | Microsoft Windows 10 64-bit / 11 64-bit |
| Форм-фактор | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| Специални функции | Dual Channel DDR5, 3+1+1 Power Phase, ASRock Auto Driver Installer |

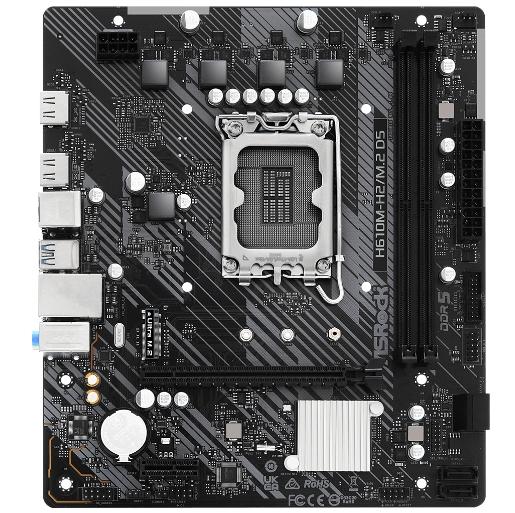

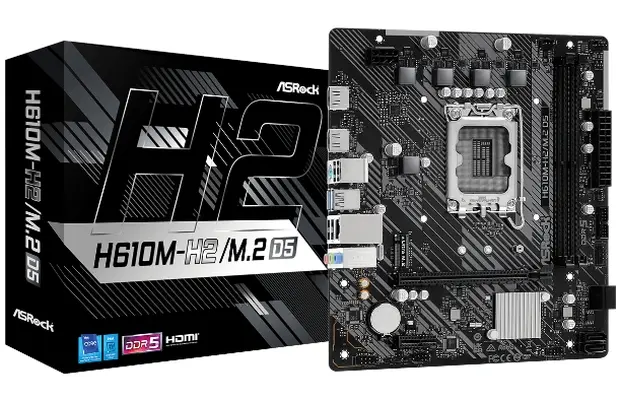

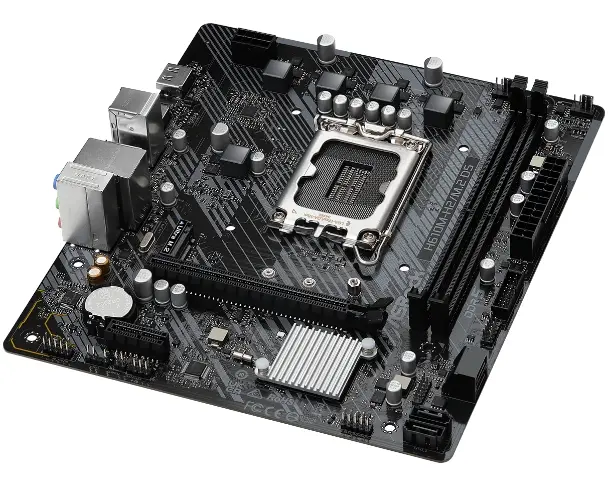

Дънна платка Asrock H610M-H2/M.2 D5
Код на продукта
145.97 лв.
175.16 лв. с ДДС:
Марка:
ASROCK
