| Суич, тип | Fixed Port |
| Общ брой портове | 30 |
| Основни портове, тип | 24x 100M/1G/2.5G |
| Power Over Ethernet (PoE) | 22xPoE+/8xPoE++; Total PoE budget: 700W; IEEE 802.3at (PoE+) - Port 1 - 20; IEEE 802.3bt (PoE++, 60 W): Port 21 - 24 - 100M/1G/2.5G; Port 25 - 28 - 1G/2.5G/5G/10G |
| Uplink портове | 4x 1G/2.5G/5G/10G, 2x 1G SFP/10G SFP+ |
| Свободни (10GB) слотове | - |
| Управление | Standalone management by Web interface; Cloud management by Nebula Control Center; Management through Telnet; Management through Web, SNMP; Firmware upgrade by FTP/Web; DHCP; |
| Stackable | Dual stack; Zyxel iStacking; IEEE 802.1AD VLAN stacking (QinQ) |
| Fans | - |
| Захранване | Internal (100 - 240 V AC, 50/60 Hz); Max. power consumption: 864.1W; Min. power consumption: 47.8W |
| Routing | Layer 3 static routing (L3 forwarding table: 512 IPv4 entries; Max. 512 IPv6 entries, Routing table: 32) |
| Памет (Flash, RAM) | 32 MB/256 MB (Flash / RAM) |
| Капацитет за маршрутизиране/превключване, Gbps | 240 Gbps |
| Пропускателна способност, Mpps | 178.5 Mpps |
| MAC адреси | 16 K |
| VLAN (брой, стандарти) | VLAN routing; Guest VLAN; 802.1Q Static VLANs/Dynamic VLANs: 1K/4K; Support up to 4K VLAN ID; Independent VLAN Learning (IVL); Port-based VLAN; Voice VLAN; VLAN trunking; Protocol-Based VLAN; IP subnet-based VLAN;MAC-based VLAN; IEEE 802.1AD;VLAN stacking |
| QoS | No. of hardware queues per port: 8; 802.1p queuing methods: SPQ, WRR, WFQ; Storm control: broadcast, unknown L2MC, unknown unicast (DLF); Rate limiting per port; Policy-based rate limiting; Policy-based prioritization |
| L2 мрежови стандарти | IEEE 802.3ab/an/bz/ae |
| L3 мрежови стандарти | IEEE 802.3x flow control; IEEE 802.3ad LACP aggregation; IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP): IEEE 802.1s Multiple Spanning Tree Protocol (MSTP |
| IPv6 functionality | IPv6 over Ethernet; IPv6 addressing architecture; Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for maximum MTU of 1500; Neighbor discovery; DHCPv6 relay; Default DHCP client mode |
| Сигурност | 802.1X; • Port security; MAC authentication; Static MAC forwarding; SSL; Static ARP; Policy-based security filtering; CPU protection; SHA2 HTTPS certification; RADIUS; ZON Utility |
| Размери (Ш, Д, В), mm | 441 x 270 x 44 mm |
| Опция за монтаж | Rackmount |

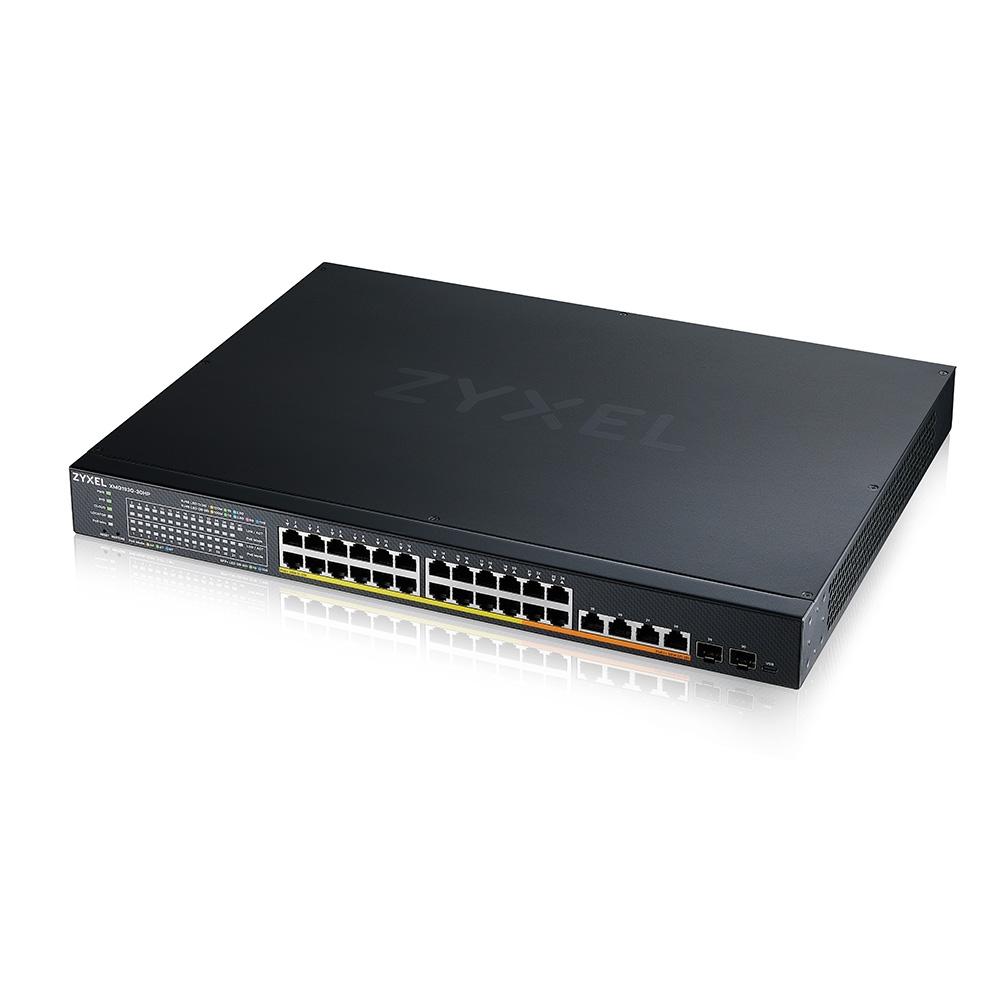

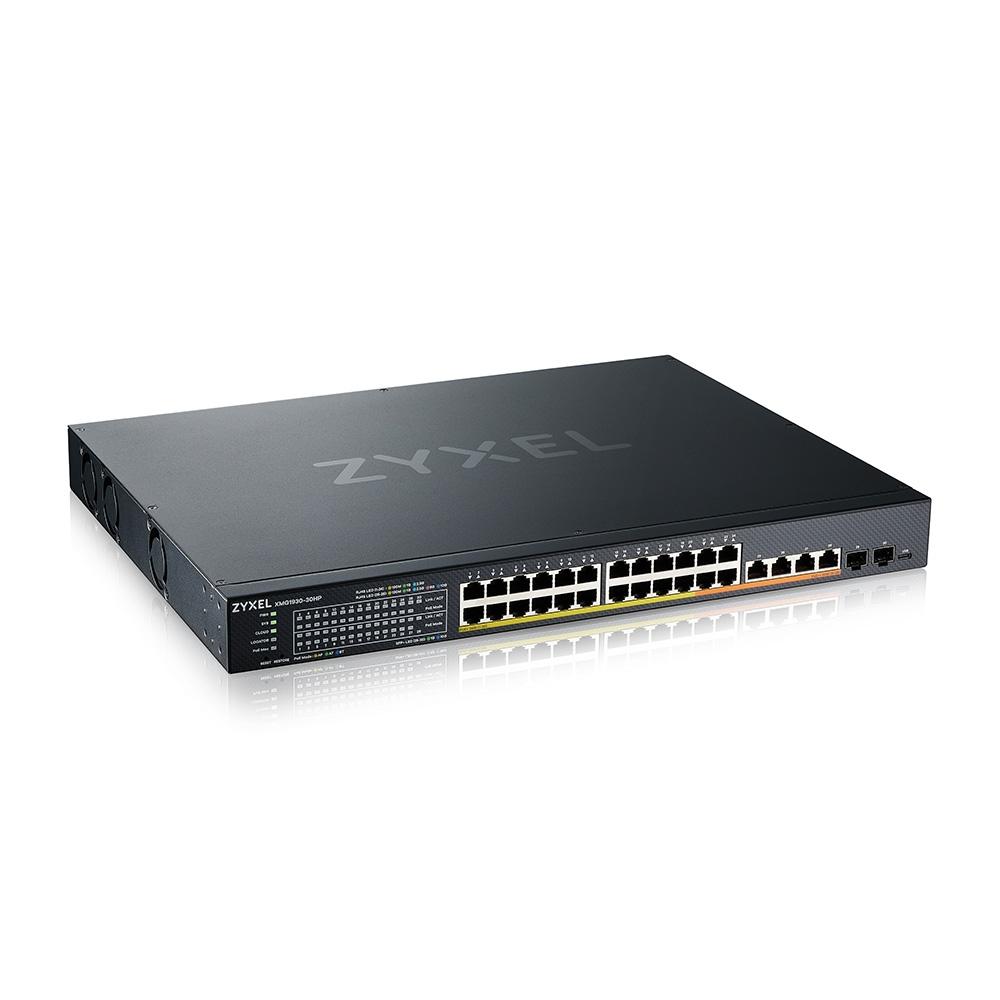

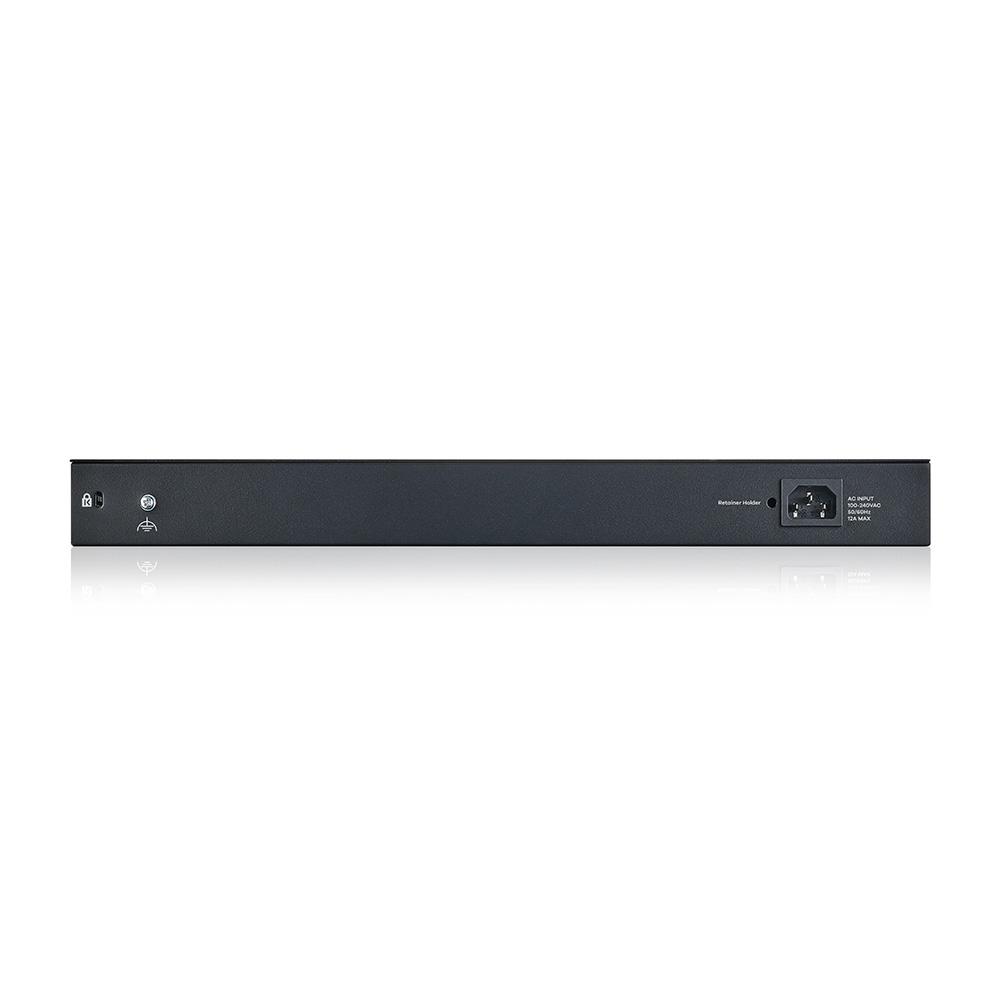

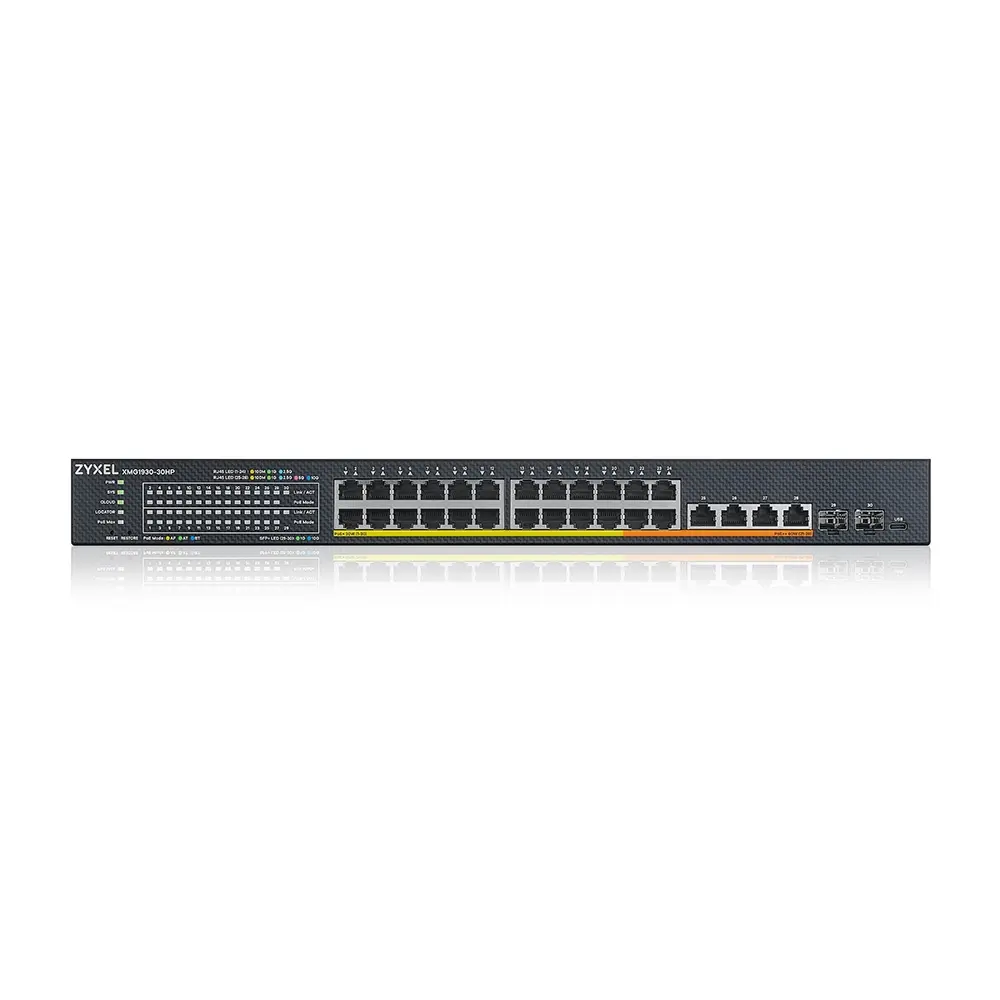

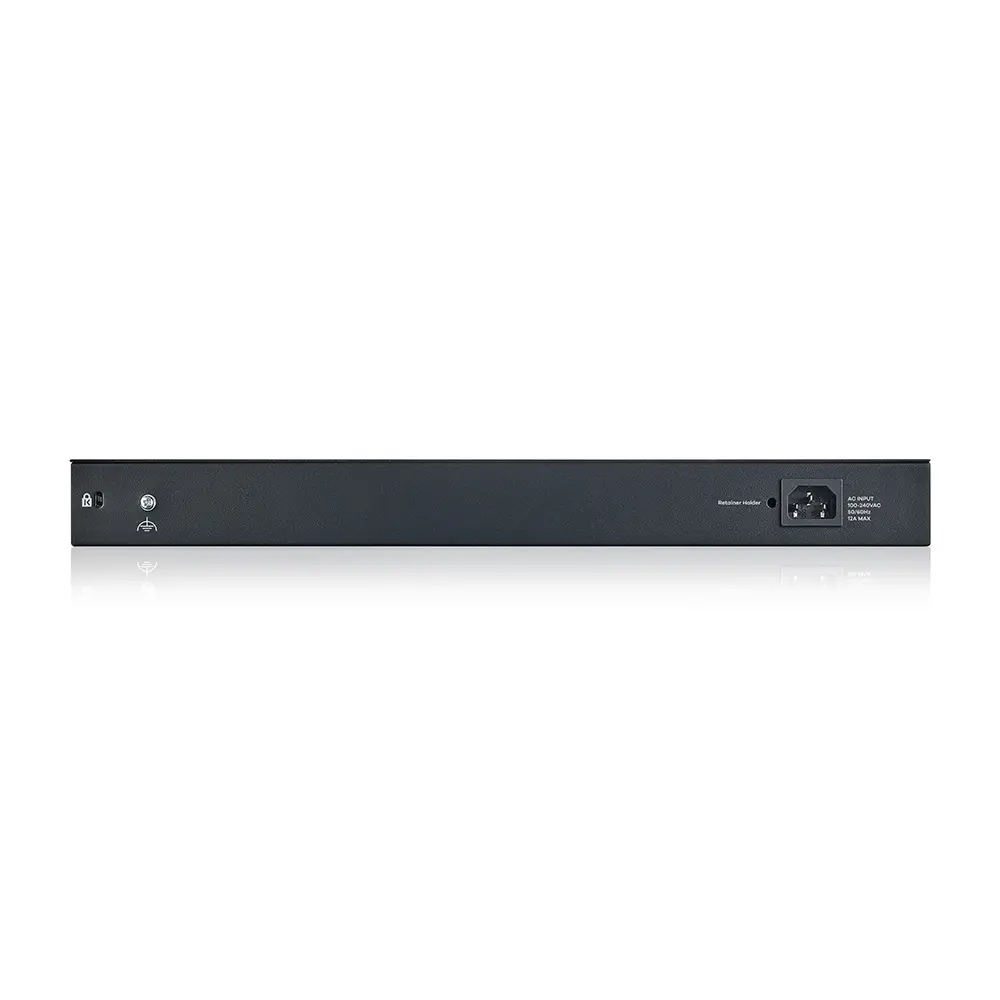

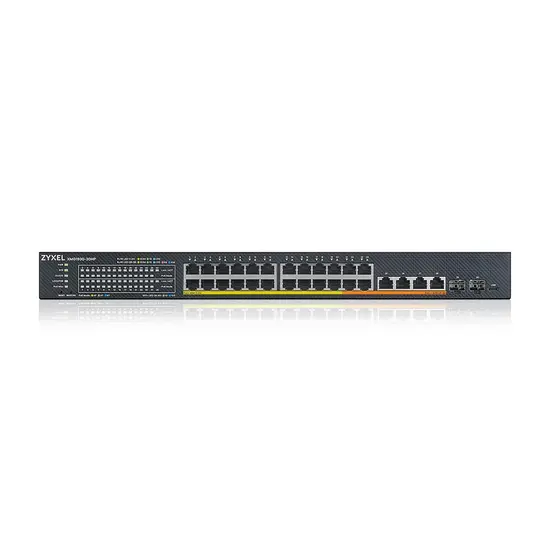

Комутатор ZyXEL XMG1930-30HP, 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink
Код на продукта
2 805.50 лв.
3 366.60 лв. с ДДС:
1 434.43 €
1 721.32 € с ДДС:
